Electronic PCB SMT Assembly PCBA

Name: Electronic PCB SMT Assembly PCBA
Rating: 4.5 (45 reviews)

Group	PCB Assembly
Min. Order	1 piece
Terms of Payment	all
Update Time	2019-04-11

Contact Now

Item specifics

Material	FR4
Board Thickness	1.6mm
Copper Thickness	1/1
Cover Film	green
Silkscreen Color	White
Surface Technics	ENIG (1-3u
Min Holes	0.2mm
Min Line space and width	6/6mil

Description

SENYAN main SMT production line consists of automated high-precision state-of-the-art equipments from Panasonic,Samsung,

Japan total 6 lines(Smallest SMT components size can reach to 0201,capable of 0.6mm*0.3mm~50mm gap,+/-0.05 accuracy),Daily capacity can reach to 11,000,000 components.

Electronic Assembly Made capacity

Item	Capability	Item	Capability
Solder PastePrintig	Accuracy:±0.025mm	Wave Soldering	Nitrogen source:external
	Max. speed:150mm/sec		Speed:5in² /sec (60FOV/sec)
	PCB max. area:400*310mm		Temperature accuracy:±1°C
	PCB thickness:0.2-6mm		Lead free compatible
SMT	Accuracy:±0.03mm	AOI	Accuracy:±0.0024mm
	Speed:0.17sec/pc		Speed:5in² /sec (60FOV/sec)
	PCB max. area:350*350mm		PCB max. area:300*300mm
	Available part:0201 chip to 35*35mm		Available component:0201 chip and fine pitch
	Accuracy:±0.05mm		Available component:0201 chip and fine pitch
	PCB max. area:350*350mm	X-ray,Inspection	BGA void(0.5mm distance between Ball)
	Available part:0402 chips to 14mm (H 12mm)		BGA void(0.5mm distance between Ball)
	Minimum SMD resistor and capacitor:0201		Solderability inner shielding
	Minimum BGA R-VTx:0.15mm	BGA Rework	Nitrogen source:NA
	Nitrogen source:external		PCB max. size:350mm
Reflow Soldering	Nitrogen source:external		Temperature accuracy:±1°C
	PCB max. size:400*330mm		Temperature accuracy:±1°C
	Temperature accuracy:±4°C		Lead free compatible

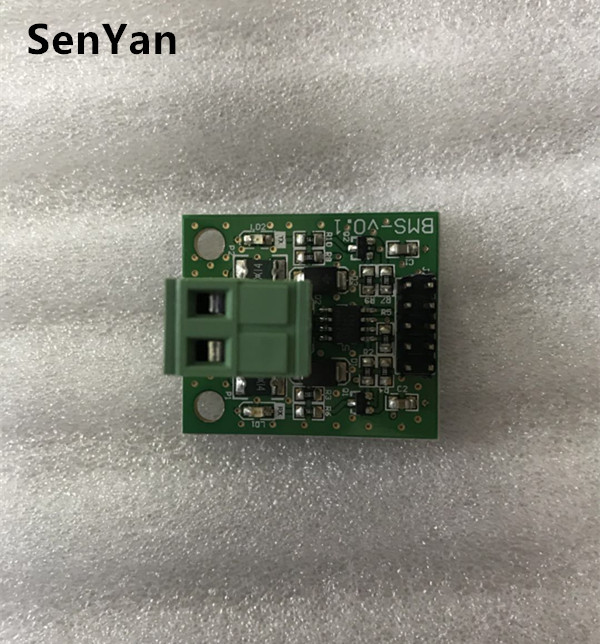

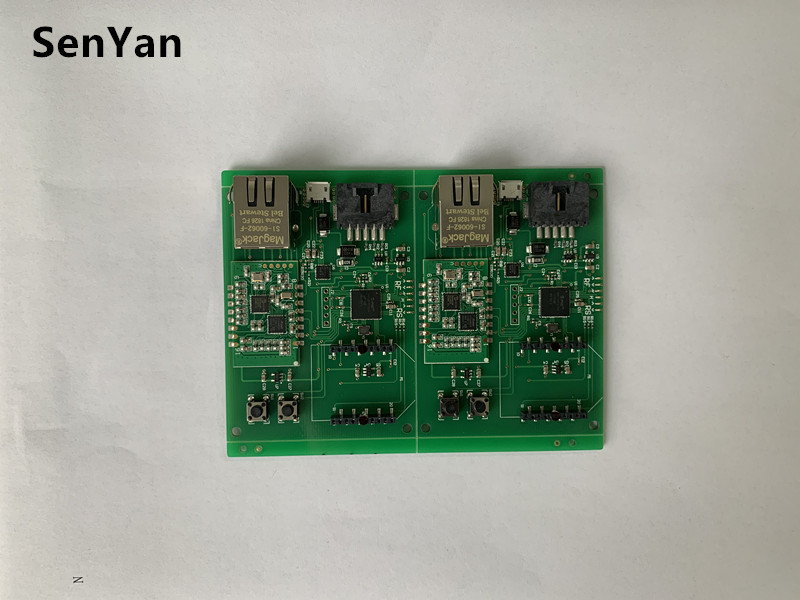

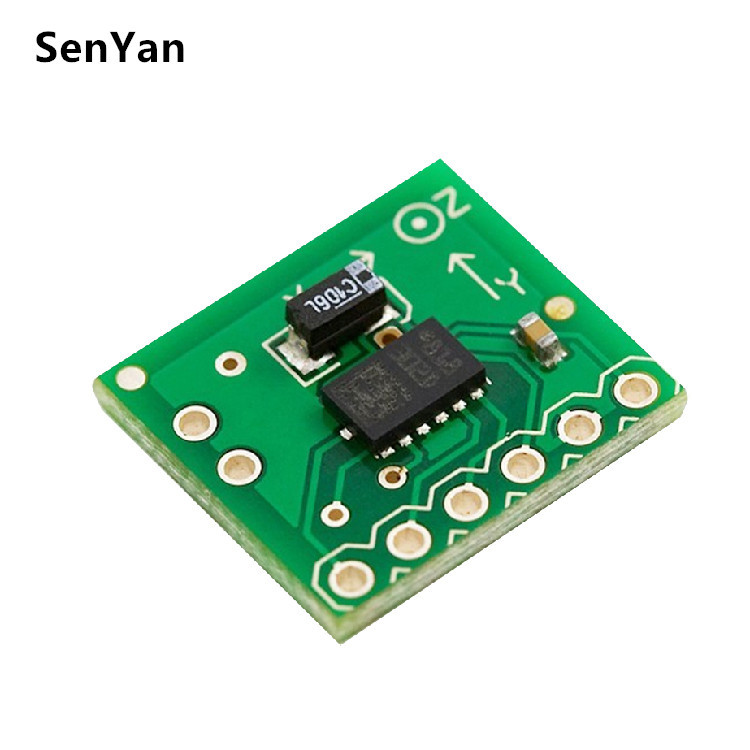

Product Display
