Ceramic Circuit Board

Group	Aluminum PCB
Min. Order	1 piece
Terms of Payment	all
Update Time	2019-04-10

Contact Now

Item specifics

Material	aluminum
Board Thickness	1.6mm
Copper Thickness	35um
Min Holes	0.3mm
Solder mask	White
Silkscreen Color	BLACK
Surface Technics	HASL

Description

SENYAN PCB offers full-service printed circuit board manufacturing with two easy options: Standard & Custom Spec. All files receive a full CAM review and all boards are inspected to IPC-A600 Class 2 or higher standards. Choosing between our two options will depend on your PCB design requirements and specifications. Compare price & turn-times by getting an Instant Quote.

PCB Production Capability

Item(pcb board)	Capability (pcb board)
Base Material	FR-4 / High TG FR-4 / Halogen Free material/Rogers/Arlon/Taconic/Teflon
Layers	1-12 LAYERS
Finised inner/outer copper thickness	1-6OZ
Finished board thickness	0.2-7.0mm
Min hole size	0.2mm
Controlled Impedance	+/-5%
Plugging vias capability	0.2-0.8mm
Outline profile	Rout/ V-cut/ Bridge/ Stamp hole
Surface treatment	HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OSP…

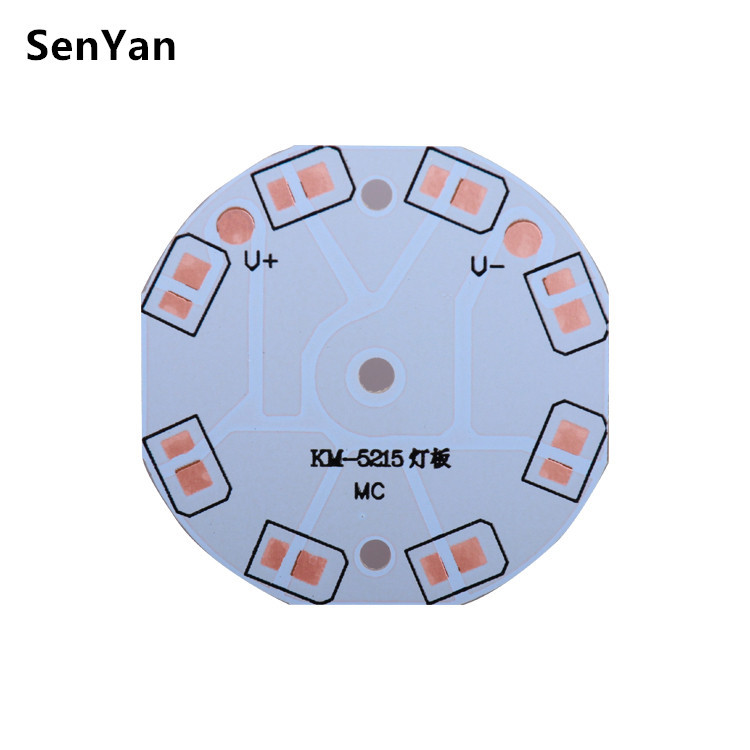

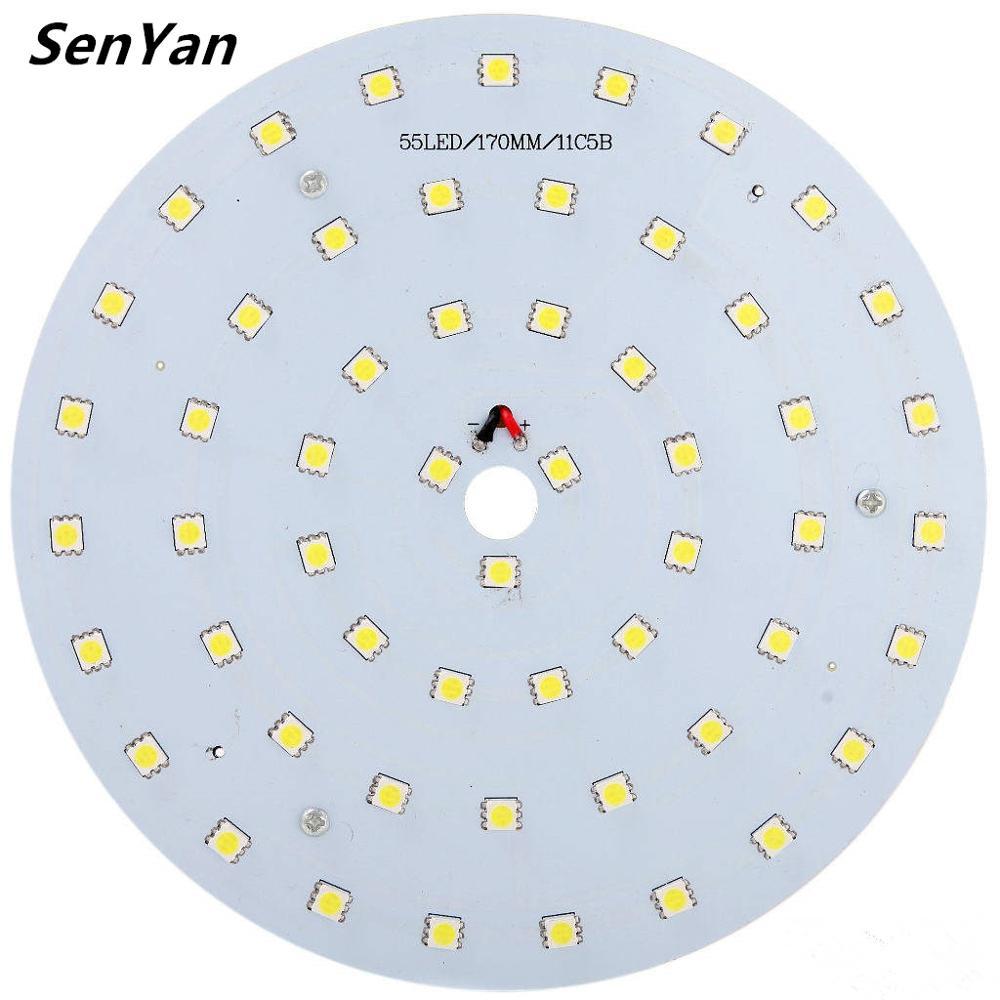

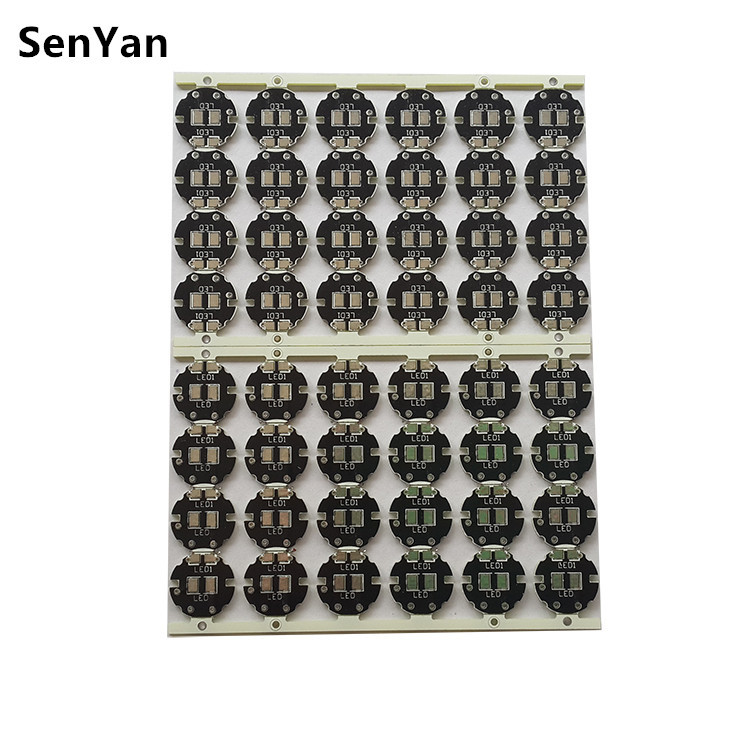

Product Display
