printed circuit board with UL ROHS
printed circuit board  with UL ROHS
printed circuit board  with UL ROHS
printed circuit board  with UL ROHS
printed circuit board  with UL ROHS

Item specifics

Material
FR4
Board Thickness
1.6mm
Copper Thickness
35um
Min Holes
0.3mm
Solder mask
White
Silkscreen Color
green
Surface Technics
Immersion Gold

Product review

Description

SENYAN PCB offers full-service printed circuit board manufacturing with two easy options:  Standard & Custom Spec. All files receive a full CAM review and all boards are inspected to IPC-A600 Class 2 or higher standards.  Choosing between our two options will depend on your PCB design requirements and specifications.  Compare price & turn-times by getting an Instant Quote.
 PCB Production Capability
Item(pcb board)
Capability (pcb board)
Base Material
FR-4 / High TG FR-4 / Halogen Free material/Rogers/Arlon/Taconic/Teflon
Layers
1-12 LAYERS
Finised inner/outer copper thickness
1-6OZ
Finished board thickness
0.2-7.0mm
Min hole size
0.2mm
Controlled Impedance
+/-5%
Plugging vias capability
0.2-0.8mm
Outline profile
Rout/ V-cut/ Bridge/ Stamp hole
Surface treatment
HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OSP…

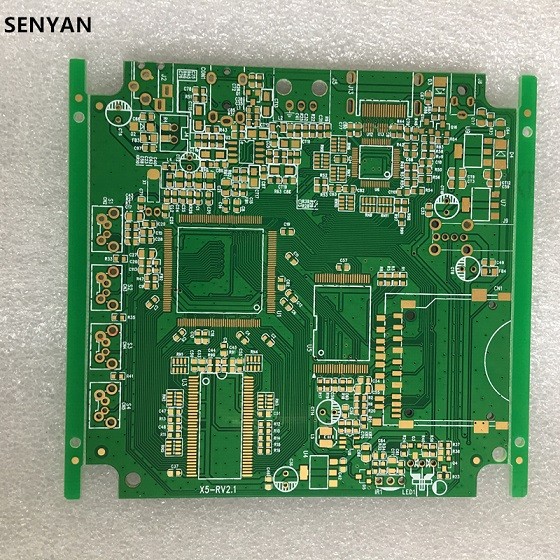

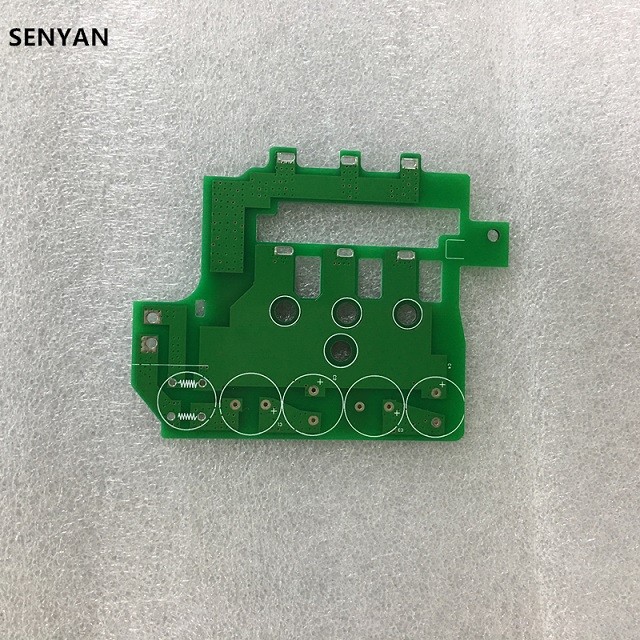

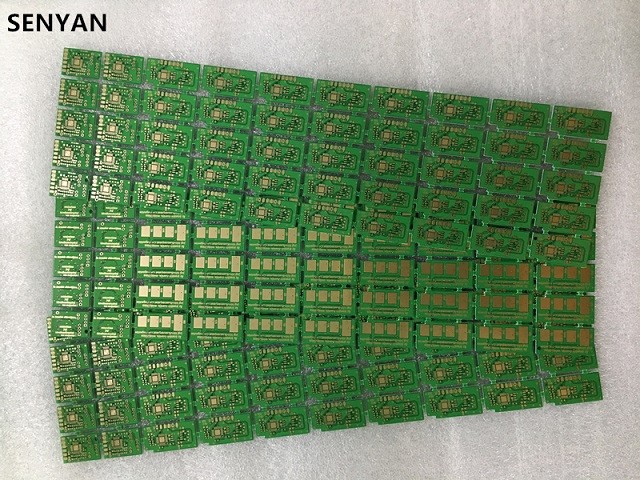

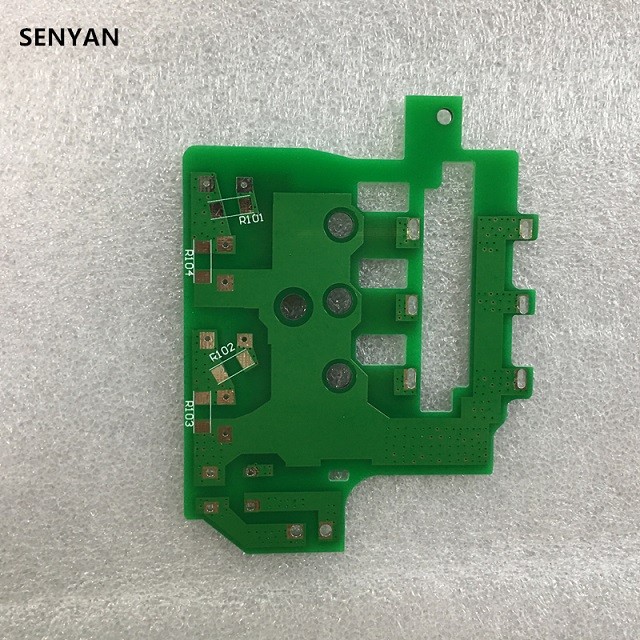

Product Display
