ENIG 2 layers PCB CIRCUIT BOARD

Group Double-Sided PCB
Min. Order 1 piece
Terms of Payment all
Update Time 2019-05-10
Item specifics
MaterialFR4
Board Thickness1.6mm
Copper Thickness35um
Min Holes0.3mm
Solder maskWhite
Silkscreen Colorgreen
Surface TechnicsHASL
SENYAN PCB offers full-service printed circuit board manufacturing with two easy options:  Standard & Custom Spec. All files receive a full CAM review and all boards are inspected to IPC-A600 Class 2 or higher standards.  Choosing between our two options will depend on your PCB design requirements and specifications.  Compare price & turn-times by getting an Instant Quote.
 PCB Production Capability
Item(pcb board)
Capability (pcb board)
Base Material
FR-4 / High TG FR-4 / Halogen Free material/Rogers/Arlon/Taconic/Teflon
Layers
1-12 LAYERS
Finised inner/outer copper thickness
1-6OZ
Finished board thickness
0.2-7.0mm
Min hole size
0.2mm
Controlled Impedance
+/-5%
Plugging vias capability
0.2-0.8mm
Outline profile
Rout/ V-cut/ Bridge/ Stamp hole
Surface treatment
HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OSP…

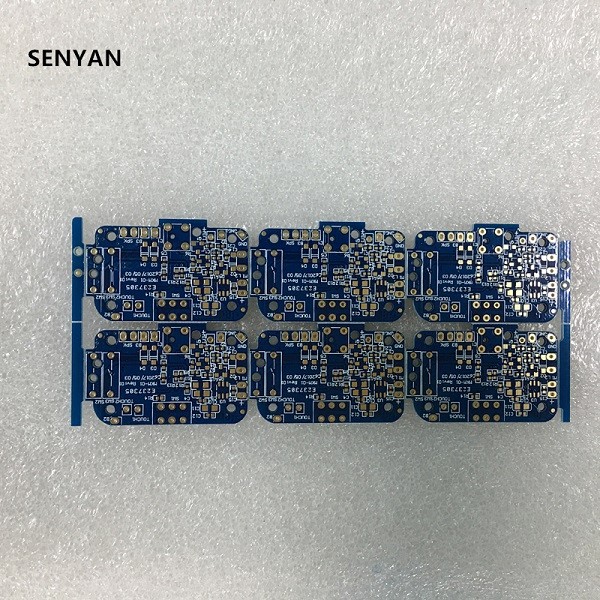

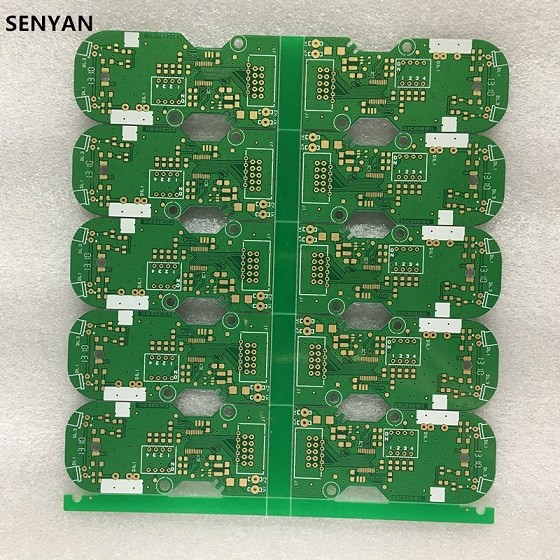

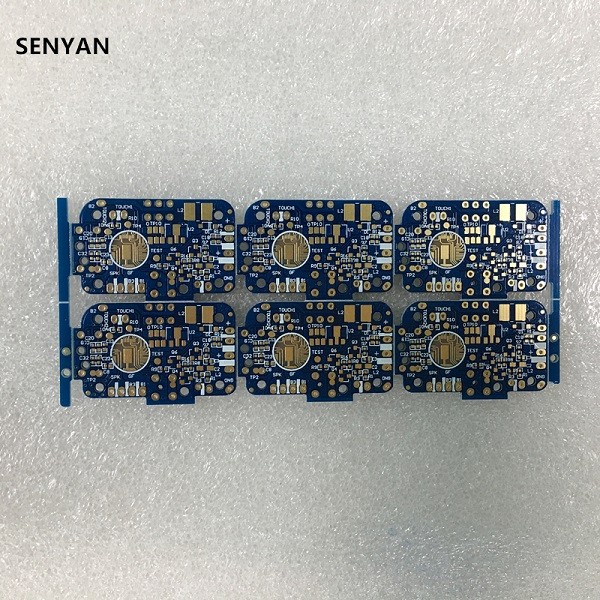

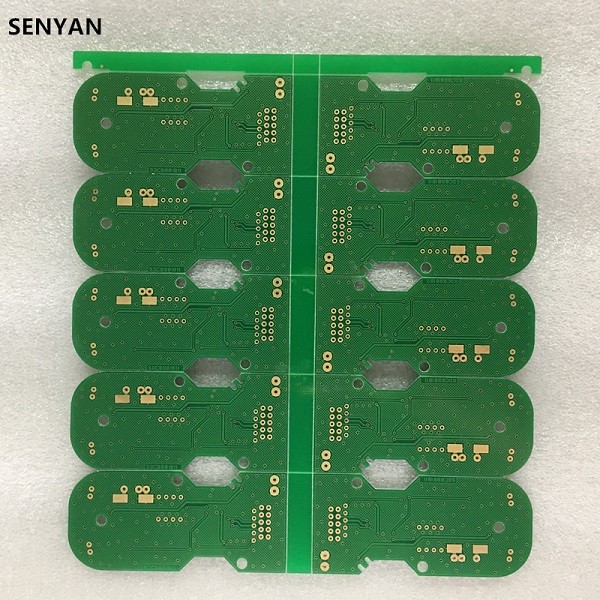

Product Display
