rohs pcb circuit
Item specifics
- Material
- FR4
- Board Thickness
- 1.6mm
- Copper Thickness
- 35um
- Min Holes
- 0.8mm
- Solder mask
- White
- Silkscreen Color
- GREEN
- Surface Technics
- OSP
Product review
Description
SENYAN has the capability to manufacture pcb ranging from basic single sided pcb boards pcb up to 12 layer multilayers pcb,and provide one stop turnkey pcb services, including pcb layout, pcb manufacture,pcb assembly, pcba components source and pcba function testing. The superior pcb service we offer our customers is the key to our success and our mission has remained the same since we started business in 2005: to provide high quality, technically advanced pcb within the customer’s timescales. This commitment,combined with the wealth of experience and expertise we have built up over the years, means we can offer a total solution to our customers PCB requirements – from front end engineering through to in time deliveries.
PCB Production Capability
Item(pcb board) |
Capability (pcb board)
|
Base Material | FR-4 / High TG FR-4 / Halogen Free material/Rogers/Arlon/Taconic/Teflon |
Layers |
1-12 LAYERS
|
Finised inner/outer copper thickness | 1-6OZ |
Finished board thickness | 0.2-7.0mm |
Min hole size | 0.2mm |
Controlled Impedance | +/-5% |
Plugging vias capability | 0.2-0.8mm |
Outline profile | Rout/ V-cut/ Bridge/ Stamp hole |
Surface treatment | HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OSP… |

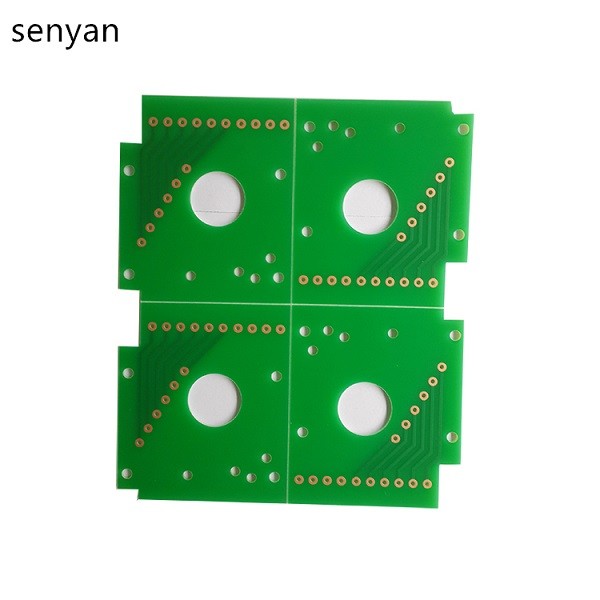

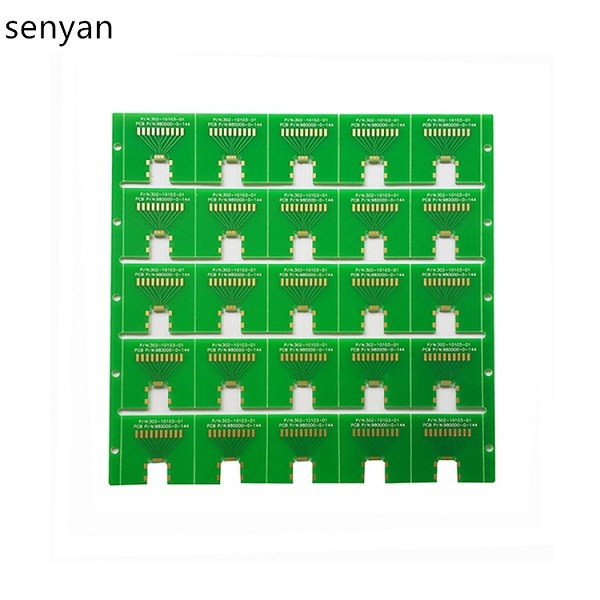

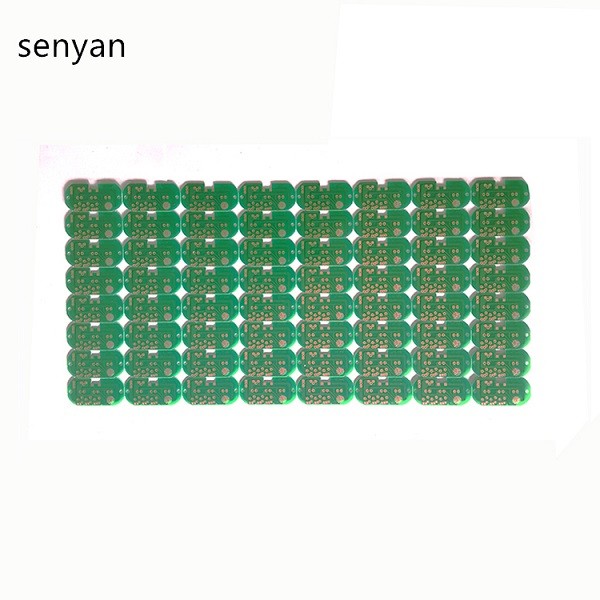

Product Display
